QH::AsyncRenderLoop Class Reference

#include <asyncrenderloop.h>

Inheritance diagram for QH::AsyncRenderLoop:

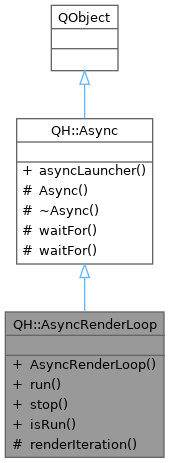

Collaboration diagram for QH::AsyncRenderLoop:

Public Member Functions
	AsyncRenderLoop (QThread *thread, QObject *ptr=nullptr)
virtual void	run ()
	run This method starts the render loop.
virtual void	stop ()
	stop This method stops the render loop.
bool	isRun () const
	isRun This method returns the state of the render loop.
Public Member Functions inherited from QH::Async
bool	asyncLauncher (const Job &job, bool await=false, bool freaze=true) const
	asyncLauncher This method invoke a job on the thread (using the asyncHandler method) of this object.

Protected Member Functions
virtual void	renderIteration (int msec)=0
	renderIteration This method is called in each iteration of the render loop. This method must be implemented in the derived class.
Protected Member Functions inherited from QH::Async
	Async (QThread *thread, QObject *ptr=nullptr)
	Async This is default constructor of the async object.
	~Async ()
bool	waitFor (bool *condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.
bool	waitFor (const Job &condition, int timeout=WAIT_TIME, bool freaze=true) const
	waitFor This is base wait function.

Additional Inherited Members
Public Types inherited from QH::Async
using	Job = std::function< bool()>

Detailed Description

Definition at line 39 of file asyncrenderloop.h.

Constructor & Destructor Documentation

AsyncRenderLoop()

QH::AsyncRenderLoop::AsyncRenderLoop	(	QThread *	thread,
		QObject *	ptr = nullptr
	)

Definition at line 14 of file asyncrenderloop.cpp.

Member Function Documentation

isRun()

bool QH::AsyncRenderLoop::isRun

(

)

const

isRun This method returns the state of the render loop.

Returns

true if the render loop is running, else false.

Definition at line 32 of file asyncrenderloop.cpp.

renderIteration()

virtual void QH::AsyncRenderLoop::renderIteration ( int  msec )

protectedpure virtual

renderIteration This method is called in each iteration of the render loop. This method must be implemented in the derived class.

Parameters

msec	time in milliseconds from the last iteration.

See also

stop

run

run()

void QH::AsyncRenderLoop::run ( )

virtual

run This method starts the render loop.

Definition at line 18 of file asyncrenderloop.cpp.

stop()

void QH::AsyncRenderLoop::stop ( )

virtual

stop This method stops the render loop.

Definition at line 26 of file asyncrenderloop.cpp.

---

The documentation for this class was generated from the following files:

• src/public/asyncrenderloop.h
• src/public/asyncrenderloop.cpp
